KC Racing (BLDC) for Scale Slot Cars - 1800Kv

Updates:
- Base changed to standard 9mmx9mm
- ESC plug in connector added
- Pinions shaft extended to 10mm

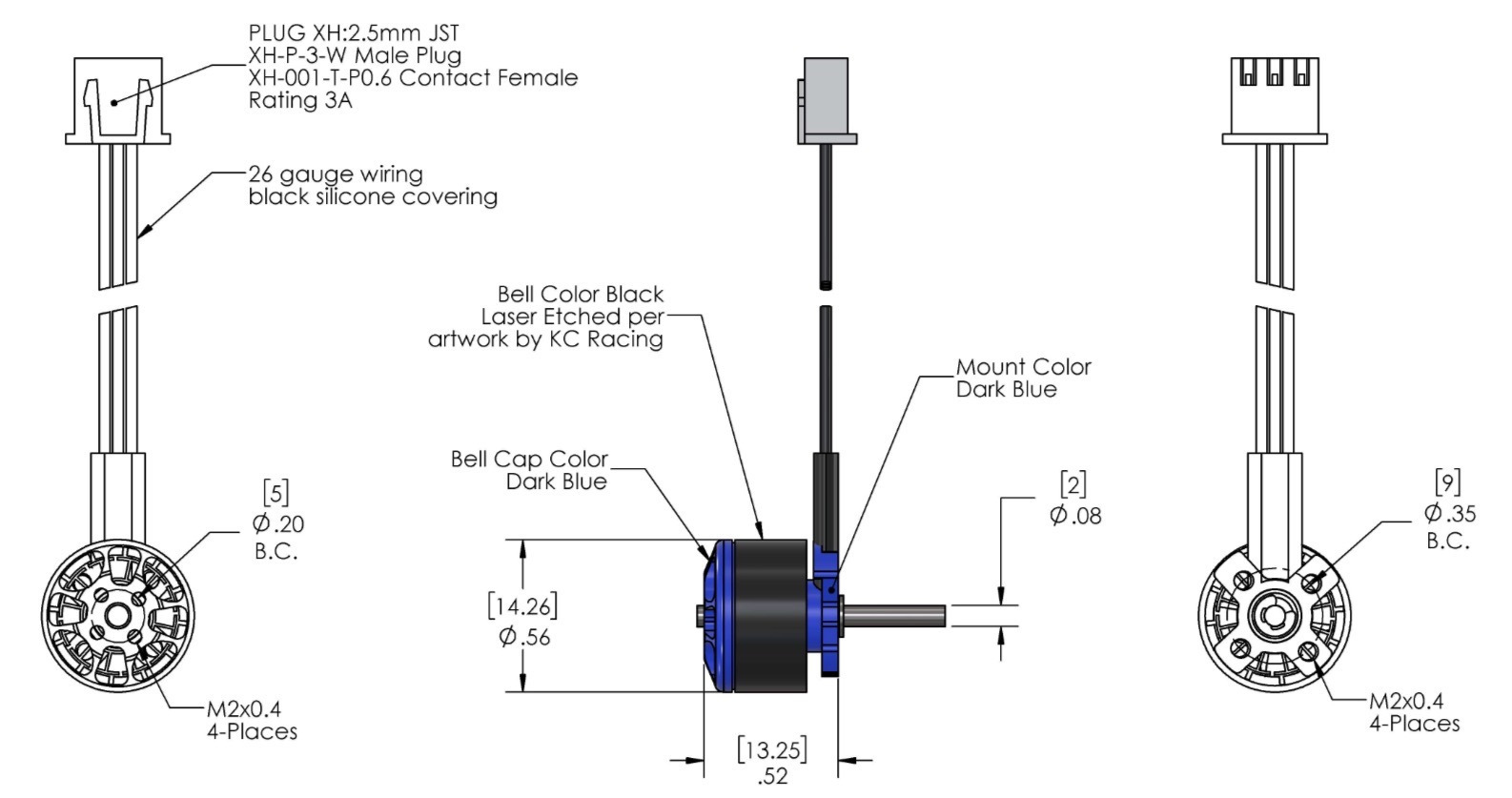

Specifications:
-Motor Size: 14.4mm x 12.8mm
-Stator Diameter: 11mm
-Stator Height: 6mm
-Rotor: 9N12P
-Wire strap to maintain clearance of the wiring and the bell
-Pinion Shaft Diameter: 2.0mm x 10 mm long
-Minimum clearance for snap ring on pinion side: 5mm
-Rotor Side Shaft Diameter: 2mm x 1mm long
-Motor Mounting: 9mm x 9mm
-Motor Cable: 26#AWG  85mm long w/JST 2,54 male connector.
-NSK Bearings
-7075-T6 Aluminum Bell
-Multicolor color design
-Weight: 7.7g (including wires)

SUGGESTED ESC - X89, X89PRO, Remora, Remora.PNP
Design Volts – 14.25v
Temperature range - 0˚- +65˚C (32˚ - +150˚F)

RPM @ 12 vdc
1800 KV - 21,600 rpm

Includes two (2) M2x3mm and two (2) M2 x 4mm.
Make sure the screws DO NOT contact the motor winding.

It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.
