Electrolytic Capacitor - 1000µF - 25vdc (KCR-CE1000-25)

An electrolytic capacitor on the power (input) side of a slot car ESC acts as a local energy reservoir and filter to stabilize the supply voltage seen by the ESC.

Brushless ESCs switch high currents through the motor phases thousands of times per second via MOSFETs. This creates rapid current pulses and voltage ripple (dips and spikes) on the input side. The track power delivery path—braids, rails, joints, and wiring—has inductance and resistance, so it cannot instantly supply or absorb those high-frequency currents. The capacitor fills the gaps:

• It supplies current during brief voltage dips (from FET switching, track resistance/voltage sag under load, or momentary braid bounce/loss of contact) and absorbs excess during spikes.

• It lowers the effective source impedance right at the ESC, reducing stress and heat in the FETs, improving efficiency, and helping prevent brownouts or resets of the ESC’s logic.

Electrolytic capacitors are commonly used for this bulk role because they pack high capacitance (typically hundreds to thousands of µF) into a small package suitable for a slot car.

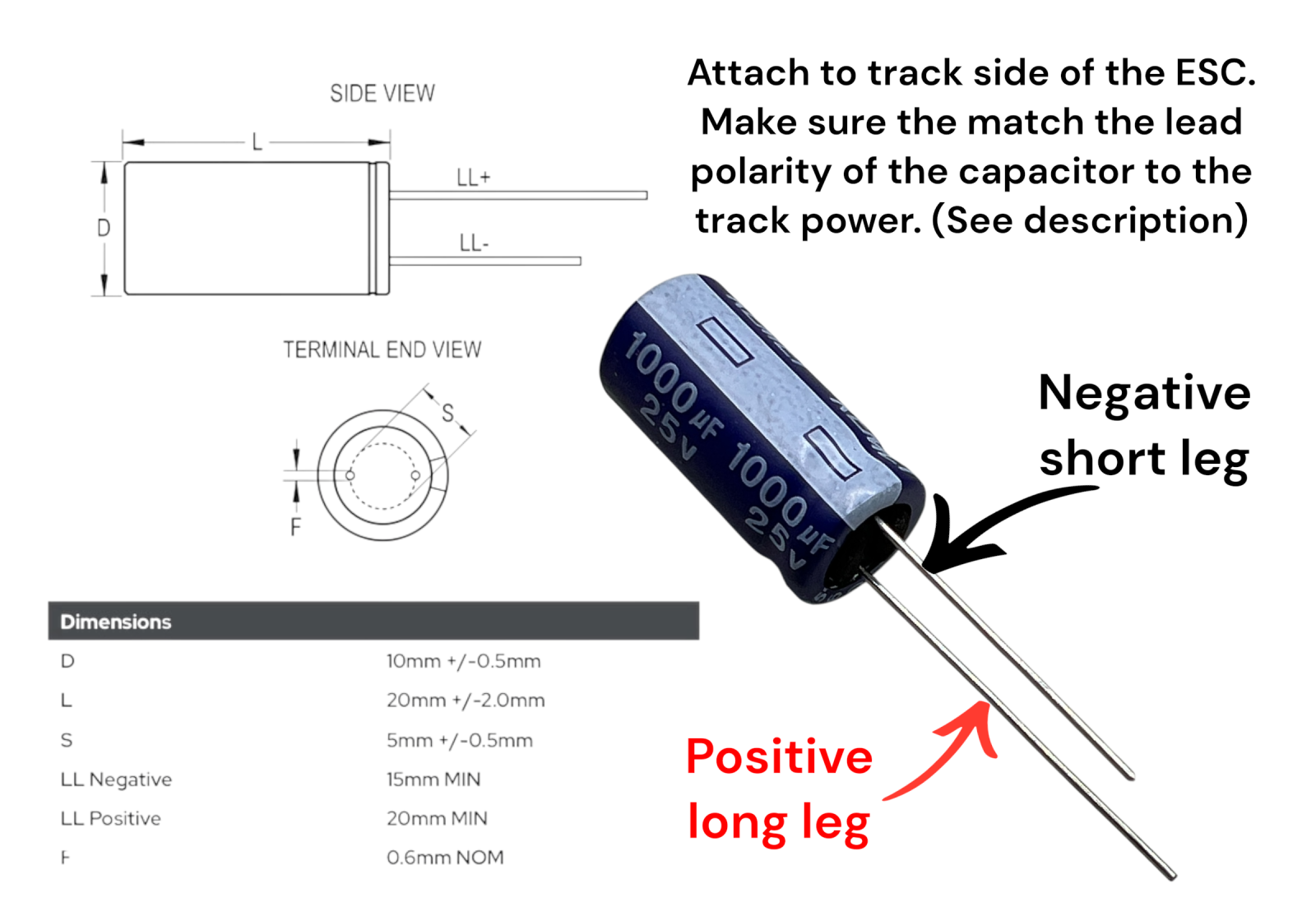

Place the capacitor as close as possible to the ESC’s power input terminals with short leads—longer wires defeat much of the high-frequency filtering benefit.

Polarity must be observed (positive to the track positive side, failure to follow this instruction can result in a capacitor exploding).

In short, it is primarily about protecting the ESC, reducing ripple-related losses/heat, and keeping voltage more stable under the switching and intermittent-contact conditions typical of slot cars.
