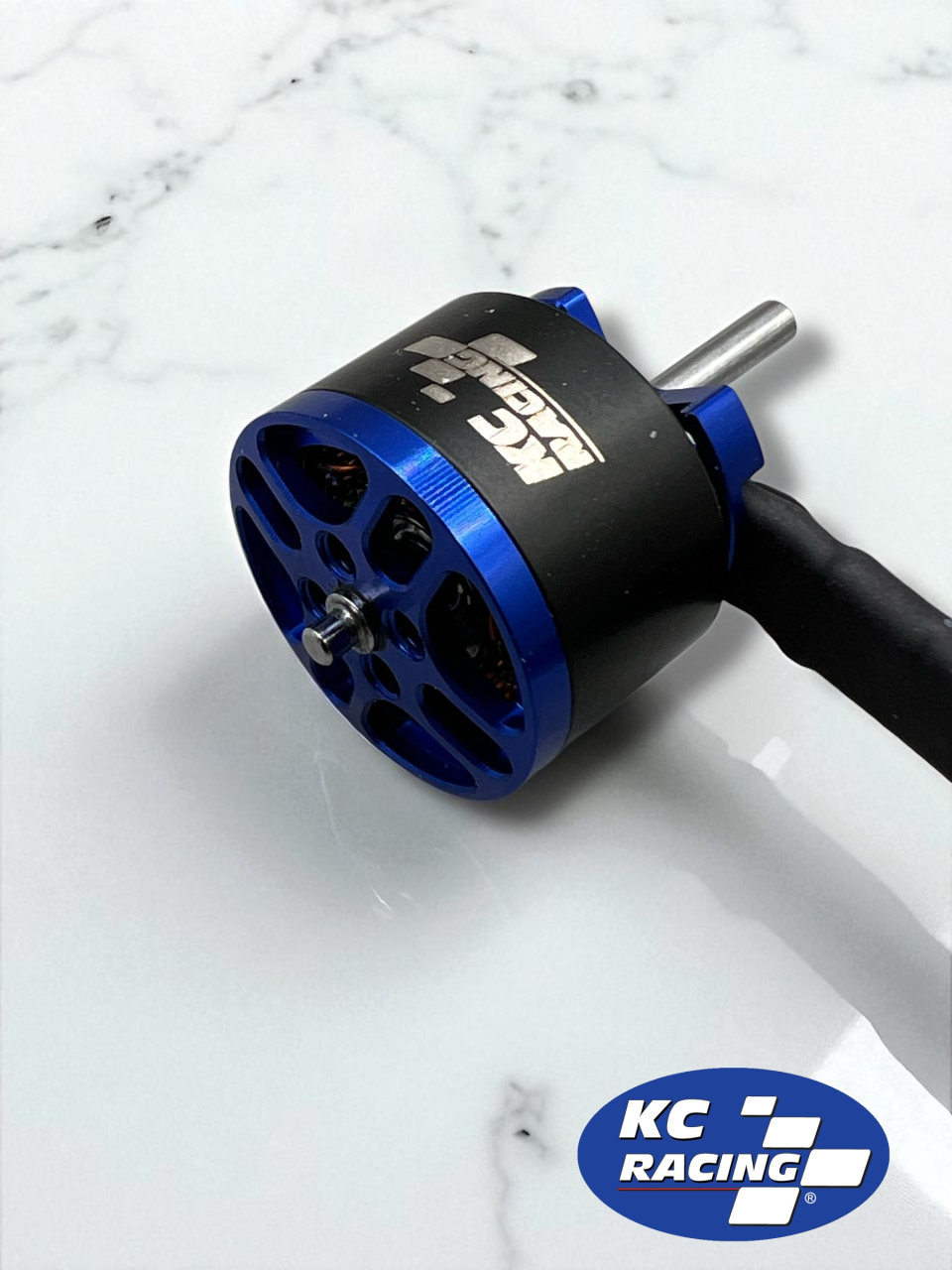

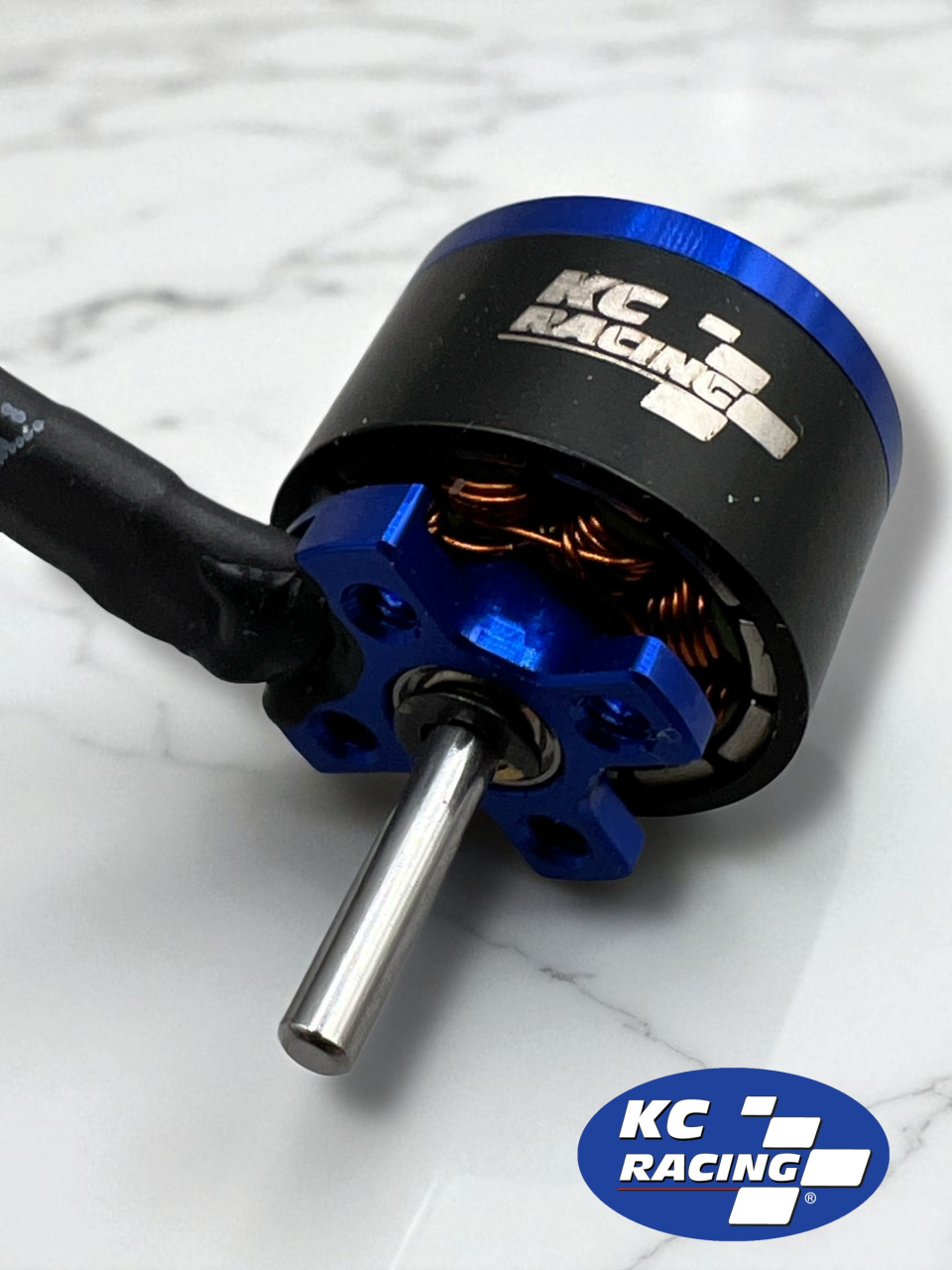

KC Racing (BLDC) for Slot Car - 6000KV

Application - Drag Racing - for the Advanced Racer.

Join the brushless revolution in slot car racing.  KC Racing has partnered with a world leading manufacturer of BLDC motors to develop an outrunner brushless motor specifically suited for slot car installations.  Completely built and tested by the manufacturer, this motor receives rigorous testing of the factory to insure quality and consistency.  Certifications of CE and ISO 9001:2015

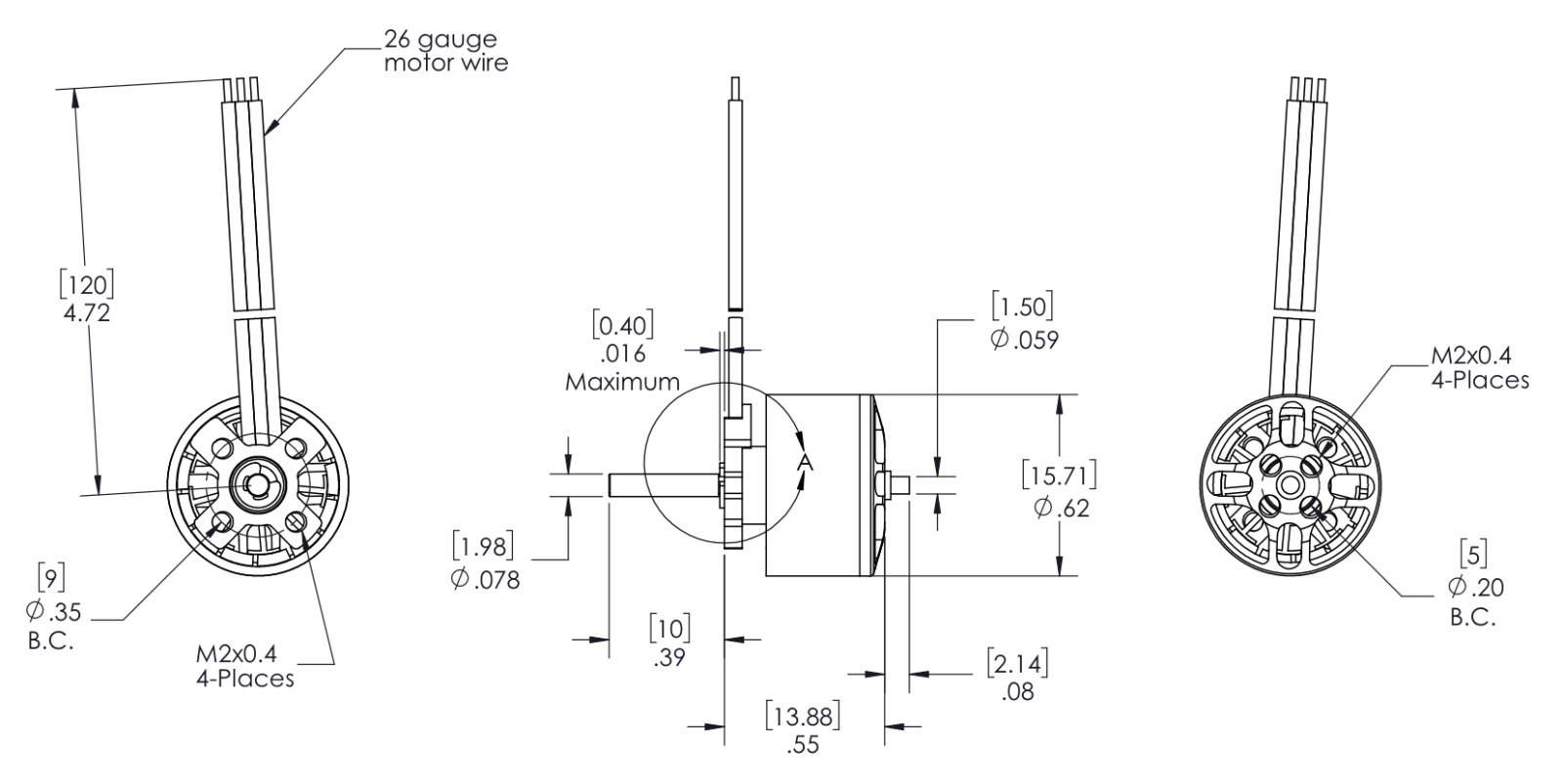

-Weight: 9.5g (including wires)
-Motor Size: 15.7mm x 13.9mm
-Stator Diameter: 12mm
-Stator Height: 7mm
-Rotor: 9N12P
-Wire strap to maintain clearance of the wiring and the bell
-Pinion Shaft Diameter: 2.0mm x 10.00mm long
-Minimum clearance for snap ring on pinion side: 5mm
-Rotor Side Shaft Diameter: 1.5mm x 1mm long
-Motor Mounting: 9mm x 9mm
-Motor Cable: 26#AWG  120mm long
-NSK Bearings
-7075-T6 Aluminum Bell
-Multicolor color design

SUGGESTED ESC - X89DRAG
Design Volts – 16.5v
Temperature range - 0˚- +65˚C (32˚ - +150˚F)

RPM @ 12 vdc
6000 KV - 72,000

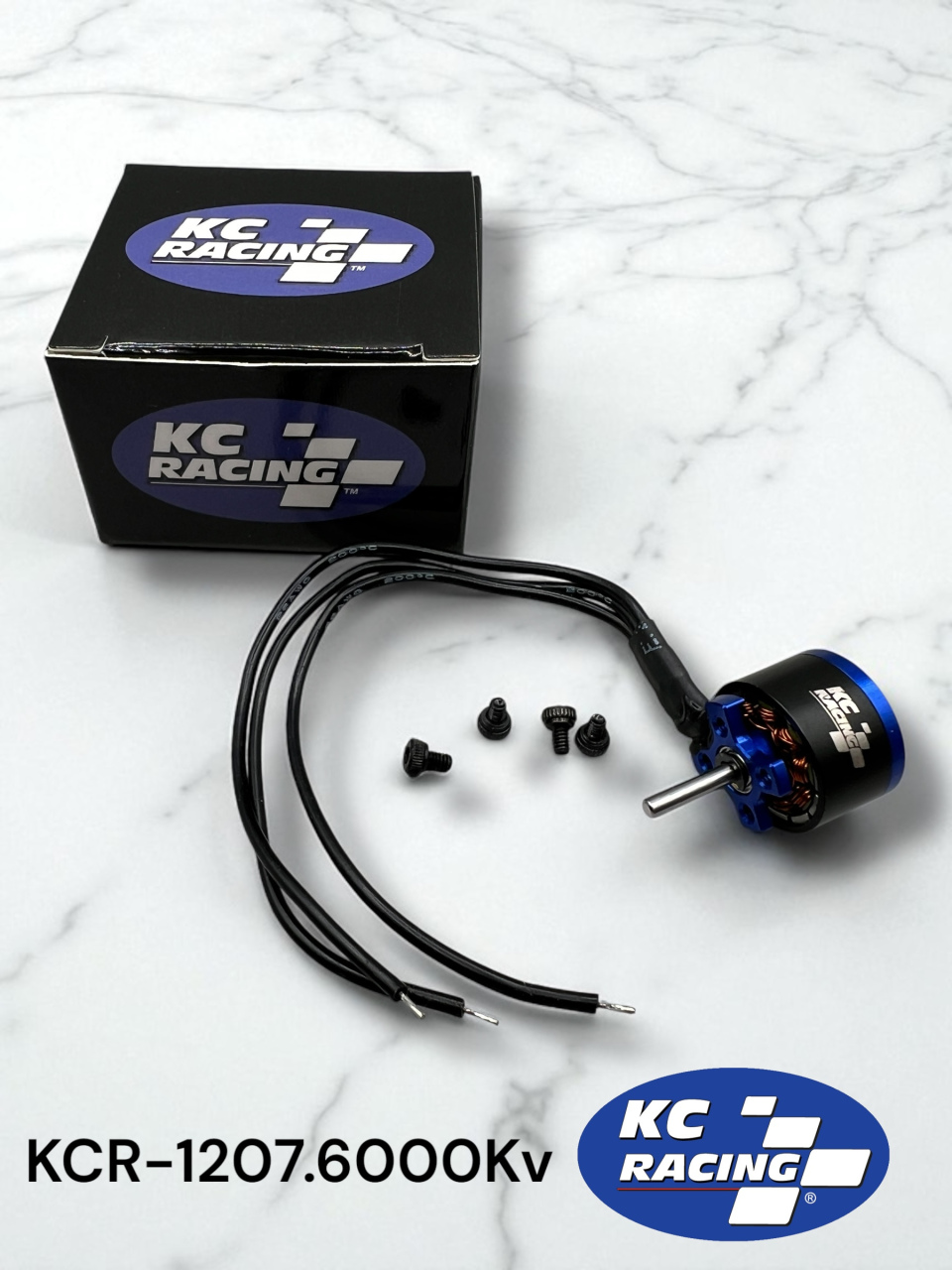

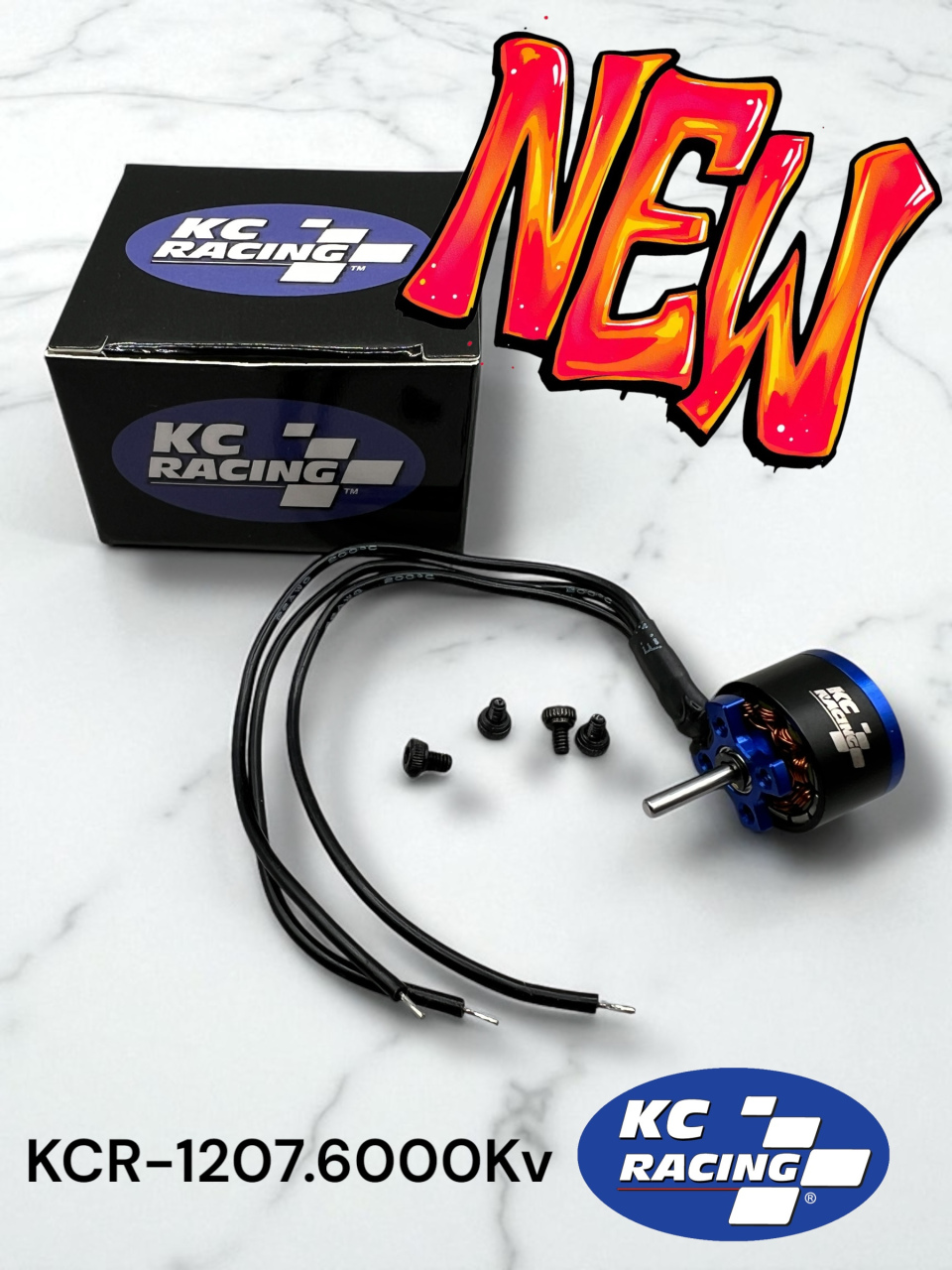

Includes four (4) M2x3mm Socket Head Screws. Make sure the screws DO NOT contact the motor winding.

It is up to the user to observe BLDC heat, ESC compatibility to preventing cogging and use of suitable ratios to prevent ESC and/or BLDC failures.
